HIARM-TWIN-01 leader

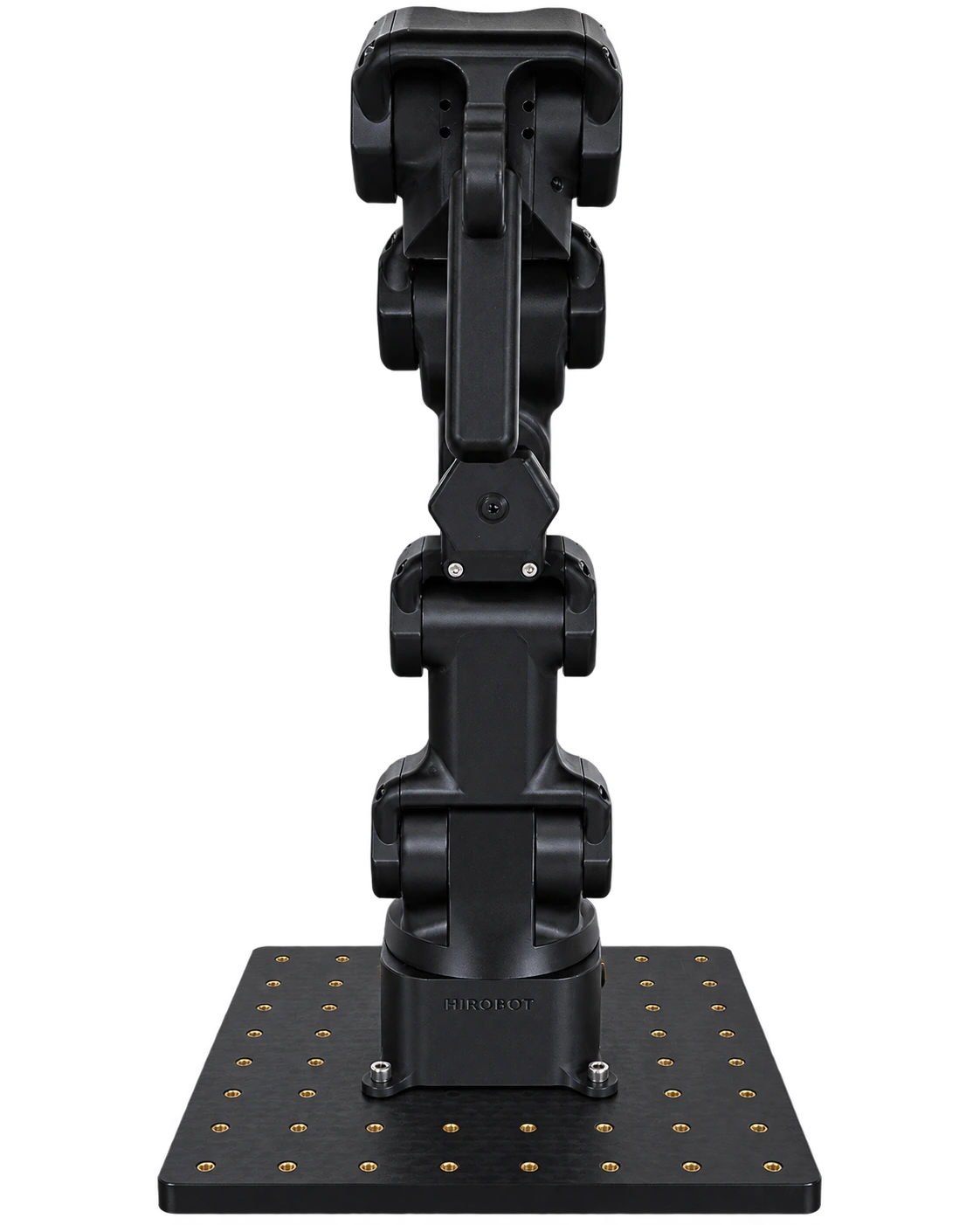

Front view of the black leader
| Item | Specification |
|---|---|
| Size | Height 50 cm × depth 20 cm × width 12.5 cm |
| Base board | 28 cm × 28 cm |
| Weight | 3.05 kg |
| Axes / motors | 7 axes / 8 motors total |
| Power | 7.5 V, 5 A |
| Color / connection | Black / USB |
HIARM-TWIN-01 follower

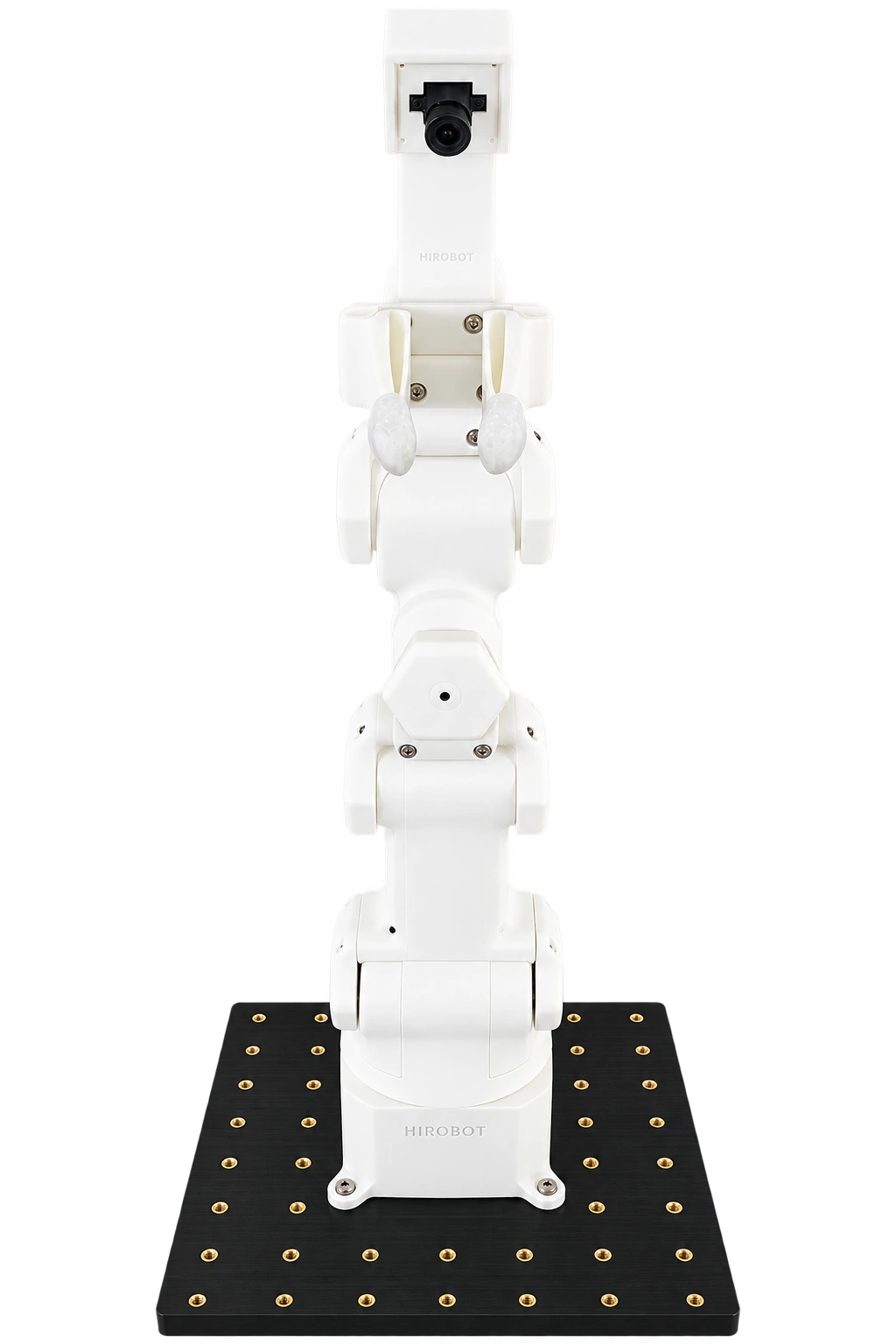

Front view of the white follower
| Item | Specification |
|---|---|
| Size | Height 58 cm × depth 23 cm × width 12.5 cm |
| Base board | 28 cm × 28 cm |
| Weight | 3.10 kg |
| Axes / motors | 7 axes / 8 motors total |
| Power | 7.5 V, 5 A |
| Color / connection | White / USB |
| Camera | One color camera included |
Rated supply
Both leader and follower use the product's 7.5 V, 5 A adapter. Also check polarity and connector details on the product label. USB is for communication, not motor power. See Assembly and wiring.
